Elf Specs
Features
 |  | |
|---|---|---|
| Mobile App | iOS/Android | iOS/Android |
| Cloud Connected | Via App Only | Always |
| Sharing Option | - | ✓ |
| Find My Scooter | - | ✓ |
| Remotely Lock/Unlock | - | ✓ |
| Tampering Alarms | - | ✓ |
| Mood Lights | ✓ | ✓ |
| Cruise Control | ✓ | ✓ |
| One Button Controls | ✓ | ✓ |
| Remote Diagnosis | - | ✓ |
| Over the Air Updates | - | ✓ |
Intelligent Features
| Elf | Elf+ | |
|---|---|---|
| Intelligent Lights | ✓ | ✓ |
| Charging Reminders | ✓ | ✓ |
| Smart Riding Suggestion | ✓ | ✓ |
| Automatic Day & Night Mode | ✓ | ✓ |

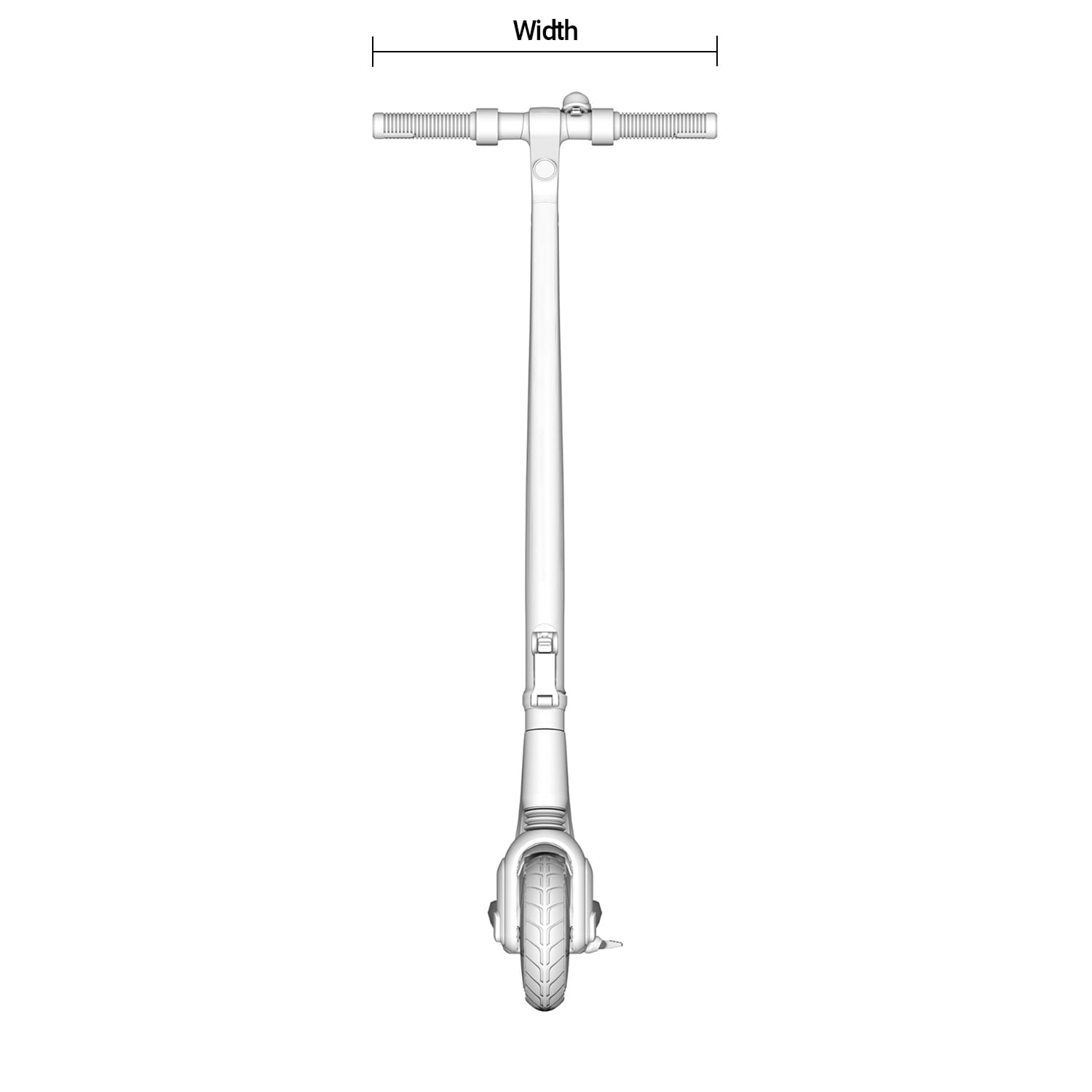

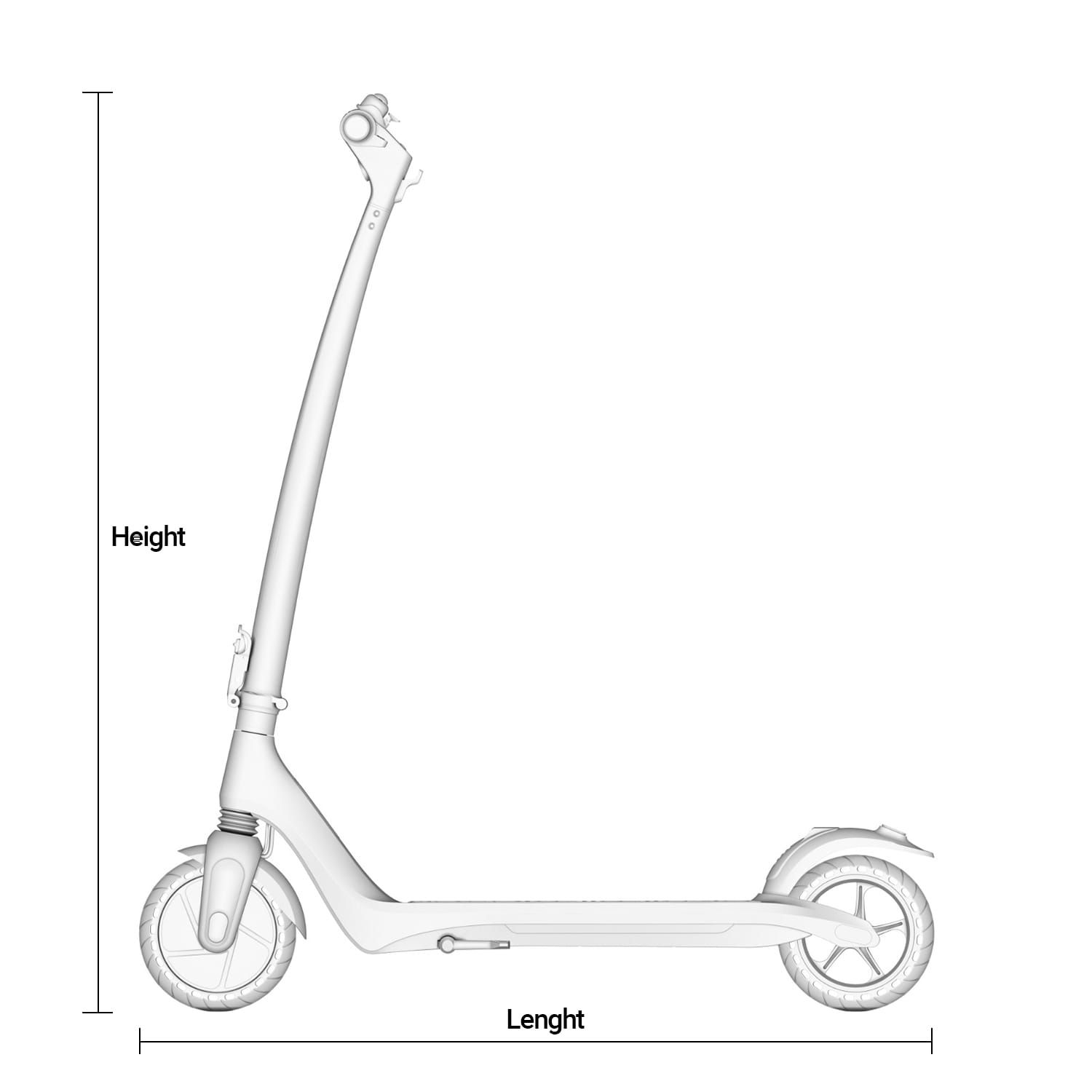

Size and Weight
Height: 46.25 inch (1175 mm)
Length: 39.96 inch (1015 mm)
Width: 17.32 inch (440 mm)
Weight: 27.5 lbs (12.5 kg)
Frame
Board - Precision Casting Magnesium Alloy
Steering Tube - Hydroformed Magnesium Alloy
Motor
Position: Rear Wheel
Construction: Direct Drive
Rated Voltage: 36V
Rated Power: 350W
Max Torque: 20Nm
Efficiency: ≥ 80%
Noise Grade: ＜35dB
Battery
Median Range: (with a 70kg person on flat road): up to 21miles (34 km)
Rated Voltage: 36DCV
Nominal Capacity: 10.5Ah
Energy Content: 378 Wh
BMS type: Smart BMS
Charging time: (with standard 3A charger): 3h (faster with a more powerful charger, to be announced)
Charging time: (with EnergyBus Charging Station - under development): ＜ 1H
Max Continuous Discharge Current: 23A
Cycle Life: 500 charges (3 Years for 200 days of use/year in a normal use-case).
Speed
North America: 20 mph Top Speed.
Europe/Singapore: 25 kph Top Speed.
Cellular, Wireless and GPS
Cellular:
North America FDD-LTE B2/B4/B12, UMTS/HSPA+ B2/B5;
Europe FDD-LTE B1/B3/B5/B7/B8/B20, TDD-LTE B38/B40/B41, UMTS/HSPA+ B1/B5/B8, GSM/GPRS/EDGE B3/B8
Australia: FDD-LTE B1/B2/B3/B4/B5/B7/B8/B28, TDD-LTE B40, UMTS/HSPA+ B1/B2/B5/B8, GSM/GPRS/EDGE B2/B3/B5/B8
Bluetooth: 4.0
GPS: GPS+GLONASS/GPS+BDS
Bluetooth: 4.2
Sensors
Accelerometer: (Only on ELF+)
Temperature Sensor
SIM Card
Nano-Sim: Connected Services included for 1 Year.
(Only on ELF+)
Display
High Brightness LCD Display
Brakes
Front: ElectronicABS-Brake
Rear: Foot-Brake
Tires
8 Inch Honeycomb Tire
In the Box
- Elf Scooter
- Charger
- Handle bar screws
- User Manual
Certifications And Ratings
Certifications:
UL- 2272, CE, ROHS
IP Ratings:
Elf Scooter: IP54
Battery: IP67
Motor: IP67
